In high-risk industrial sectors like oil and gas, mining, chemical processing, and grain handling, standard communication tools present severe safety hazards. A minor thermal buildup or a tiny electrical spark from a standard device can trigger catastrophic explosions if flammable vapors, gases, dusts, or fibers are present. To mitigate these risks, Motorola Solutions engineering includes two distinct categories of specialized communication equipment: ATEX-certified radios and Intrinsically Safe (IS) radios.
While both product lines are engineered to eliminate ignition hazards, they diverge significantly in their safety engineering, certification frameworks, and operational power limits. Selecting the proper Motorola two-way radio requires a clear understanding of these fundamental differences.
1. Decoding Hazardous Environment Frameworks
Deploying the correct radio depends entirely on how your specific facility classifies its hazardous locations. Industrial environments where ignitable substances pose a threat are classified under two primary international frameworks:
The Zone Methodology (IEC/ATEX)
Dominant globally and standard throughout Europe, this framework ranks environments by the duration and frequency of explosive atmospheres.
- Gas & Vapor Hazards: Categorized into Zones 0, 1, and 2.
- Combustible Dust Hazards: Categorized into Zones 20, 21, and 22.
- Radio Alignment: Motorola’s ATEX portfolio is custom-engineered to match this Zone system.
The Class/Division Methodology (NEC/ANSI)
Predominantly used across North America, this system organizes hazards by the specific material type and its likelihood of being present.
- Material Classes: Class I involves gases/vapors, Class II covers dusts, and Class III addresses ignitable fibers.
- Probability Divisions: Division 1 denotes frequent or continuous presence, whereas Division 2 indicates rare or abnormal presence.
- Radio Alignment: Motorola’s Intrinsically Safe devices, certified under standards like TIA-4950, are built for this Class/Division architecture.
2. Motorola ATEX Radios: Containment-Based Explosion Protection
Engineering Philosophy
ATEX derives its name from the French phrase “ATmosphères EXplosibles”. These radios (such as the MOTOTRBO DP4401 Ex and DP4801 Ex) are engineered for high-risk zones where volatile atmospheres are a common occurrence.
The primary defense mechanism of an ATEX radio is its physical containment. They are constructed with heavy-duty, explosion-proof enclosures engineered to capture and isolate internal thermal energy or electrical sparks, preventing any internal ignition from escaping into the surrounding environment.
Key Technical Specifications
- Strict Power Caps: To minimize thermal and electrical energy output, these radios are strictly limited to a maximum of 1 watt of transmission power across both VHF and UHF bands.
- Safety Features: They offer IP67-rated dust and water ingress protection, alongside critical safety features like GPS tracking, Man Down alerts, and Lone Worker monitoring.

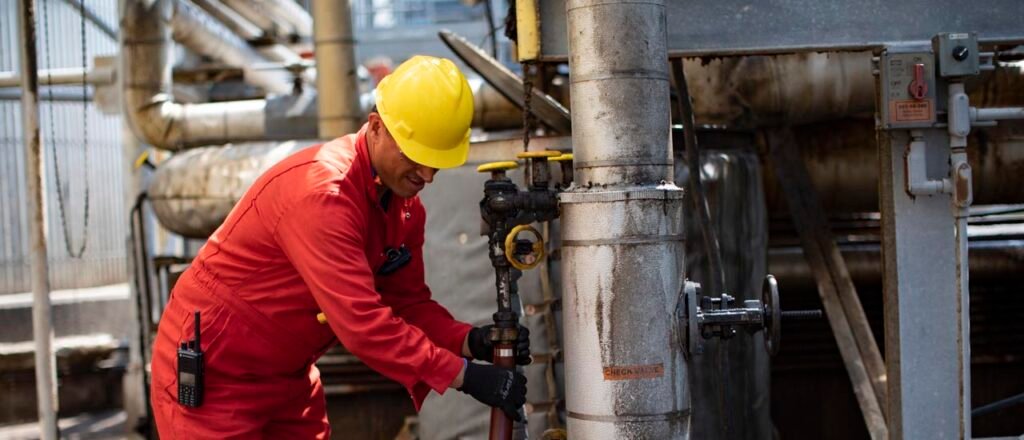

- Primary Applications: Ideal for Zone 1 and Zone 2 environments , including offshore oil platforms, underground mining operations, and chemical processing plants.
3. Intrinsically Safe (TIA-4950) Radios: Energy-Limiting Circuit Design
Engineering Philosophy
Unlike ATEX devices that rely on physical containment, Intrinsically Safe (IS) radios prevent ignition by managing energy at the source. Motorola’s IS radios, including specific TIA-4950 certified MOTOTRBO R7 models, are engineered so that their internal electrical systems cannot generate enough thermal or electrical energy to ignite a hazardous atmosphere.
Even if a component suffers a critical failure, the electrical design prevents energy spikes, neutralizing the threat of ignition.
Key Technical Specifications
- Enhanced Signal Range: Because safety is maintained through low-energy circuitry rather than a strict 1W cap, these radios can operate at higher power levels—5 watts for VHF and 4 watts for UHF—delivering superior coverage distances.
- Operational Features: Features include IP67 environmental sealing, Intelligent Audio processing, direct text messaging, and integration with certified IS-approved accessories.
- Primary Applications: Approved for Class I, II, III, Division 1 and 2 locations. They are widely deployed in large-scale petrochemical facilities, agricultural grain silos, and manufacturing plants.
4. Feature Comparison Matrix
| Technical Parameters | Motorola ATEX Radios | Motorola Intrinsically Safe (TIA-4950) |
| Safety Approach | Heavy-duty, explosion-proof containment enclosures | Advanced energy-limiting circuit architectures |
| Target Framework | Global / European Zone Systems | North American Class/Division Systems |
| RF Output Power | Capped at 1 Watt (VHF/UHF) | 5 Watts (VHF) / 4 Watts (UHF) |
| Coverage Profile | Shorter ranges; optimized for tight or dense spaces | Extended ranges; optimized for sprawling worksites |
| Example Models | MOTOTRBO DP4401 Ex / DP4801 Ex | MOTOTRBO R7 TIA-Certified Variants |
5. Deployment Checklist for Safety Professionals
- Conduct a Site Risk Assessment: Engage qualified safety experts to determine whether your facility maps to the Zone system or the Class/Division standard.
- Verify Exact Certification Matches: Double-check that the radio’s precise ratings match the exact types of gases, dust types, or fiber hazards present on your site.
- Enforce System Accessory Integrity: A safety rating is only valid if the entire system matches. Never connect an uncertified accessory; always use dedicated ATEX or TIA-4950 certified audio accessories and batteries.
- Evaluate Regional Mandates: Remember that ATEX is legally required within European borders , whereas TIA-4950 satisfies United States compliance. Global operations must evaluate if dual certification paths are required.
