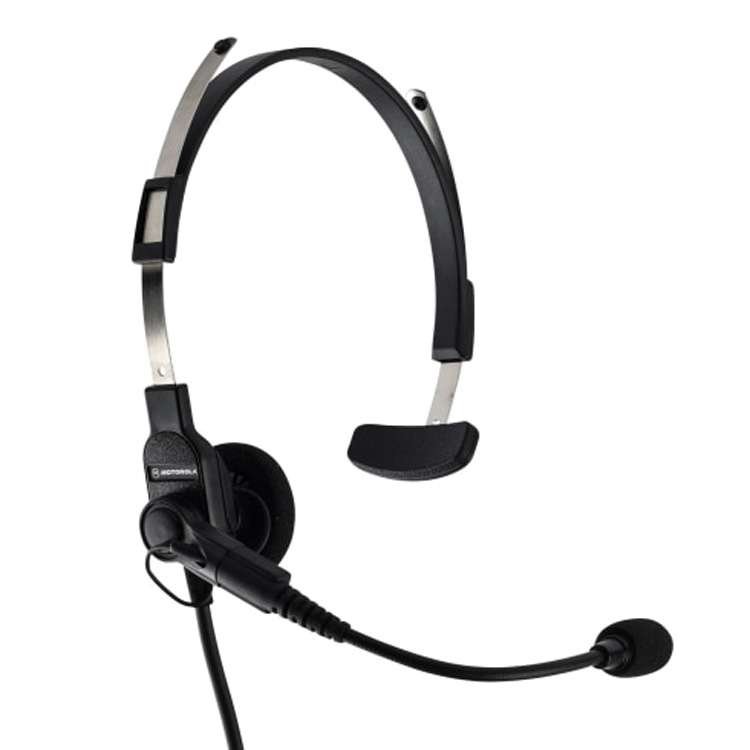

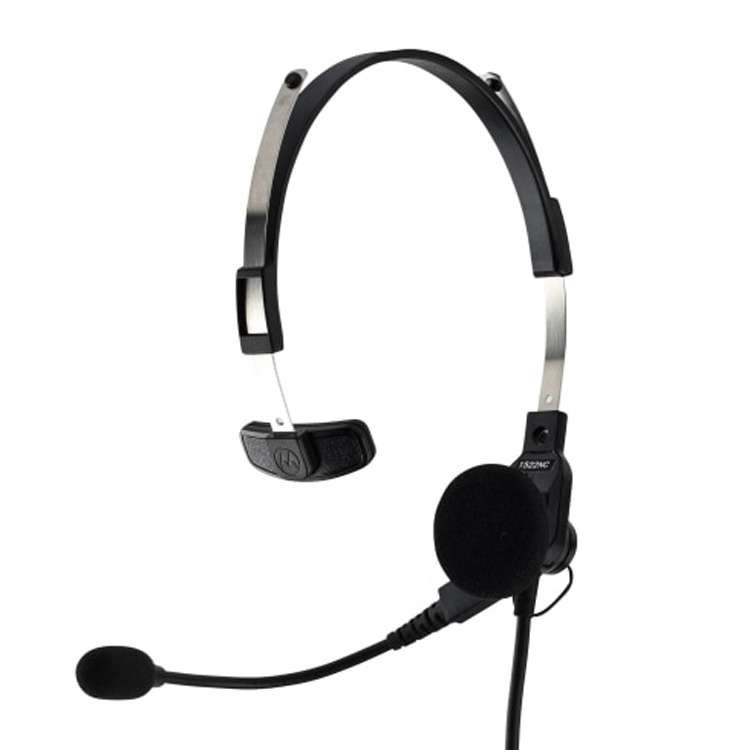

BDN6773A Motorola Radio Headset
Motorola BDN6773A Lightweight Headset, also searched as BDN6773 / BDN6773A, features a single-ear speaker and swivel boom microphone for clear communication with compatible Motorola business radios. Contact us for current pricing, stock status and compatibility confirmation.
- Headset Type: Lightweight single-muff headset
- Microphone: Adjustable swivel boom microphone
- Operation: Radio-side PTT or VOX on supported radios
- Verified Radios: VL50, CP100, DTR550, DTR650, DTR620, SP21, CLS1110 and CLS1410
- MOQ: 1 Piece
- Payment: T/T or Credit Card
- Shipping: EXW, FOB, FCA, DAP, DDP or delivery to your appointed freight forwarder
Motorola BDN6773A Lightweight Headset, commonly searched as Motorola BDN6773, is an adjustable single-muff communication headset equipped with a swivel boom microphone. It is designed for clear, private and hands-free radio communication in retail, hospitality, education, security and other moderate-noise working environments.
The single-ear design allows the user to receive radio audio while keeping the other ear open to nearby conversations and environmental sounds. The headset can be positioned on either ear and connects directly to compatible Motorola business radios without a separate audio adapter.
Product Overview
- Model: Motorola BDN6773A
- Alternative Search Number: BDN6773
- Product Type: Lightweight communication headset
- Speaker Configuration: Single muff / single ear
- Microphone: Adjustable swivel boom microphone
- Wearing Position: Left or right ear
- Recommended Environment: Moderate-noise workplaces
- Transmission Control: Radio-side PTT or VOX on supported radios
- Adapter Requirement: No separate adapter required for the verified compatible radios
Key Features
- Lightweight single-ear design for comfortable extended wear
- Swivel boom microphone can be adjusted close to the user’s mouth
- Can be worn on either the left or right ear
- Keeps one ear open for nearby conversations and environmental awareness
- Supports hands-free VOX operation when VOX is available and enabled on the connected radio
- Direct connection to verified compatible radios without an external audio adapter
Important: The BDN6773A does not include an in-line PTT button. When VOX is not enabled, transmission is controlled using the PTT button on the connected radio.
Compatible Motorola Radios
Compatibility is determined by the radio accessory interface and audio configuration, not only by the apparent two-pin connector shape. The following models are supported by Motorola documentation or established Motorola dealer accessory listings.
North America
- Motorola VL50
- Motorola CP100
- Motorola DTR550
- Motorola DTR650
- Motorola CLS1110
- Motorola CLS1410
- Motorola SP21 legacy portable radio
Latin America and Caribbean
- Motorola DTR620
- Motorola DTR550 and DTR650 in markets where these legacy radios were supplied
- Motorola VL50 and CP100 in existing legacy business-radio fleets
Europe, Middle East and Africa
No direct compatibility with the European DP, DM or current R Series platforms has been verified in the Motorola documentation reviewed. Do not order the BDN6773A for DP1400, DP2000, DP4000, DP4000e, R2 or R7 radios without obtaining written compatibility confirmation.
Asia-Pacific
No direct compatibility with XiR, DP or current MOTOTRBO regional models has been verified. The BDN6773A should not be treated as an accessory for XiR P6600, XiR P8600, DP4000, R2 or R7 radios merely because another radio appears to use a similar connector.
Technical Specifications
| Model Number | BDN6773A / BDN6773 |
| Accessory Type | Lightweight radio headset |
| Speaker Design | Single muff / single speaker |
| Microphone Type | Adjustable swivel boom microphone |
| Wearing Side | Left or right ear |
| Cable Configuration | Single-wire headset cable |

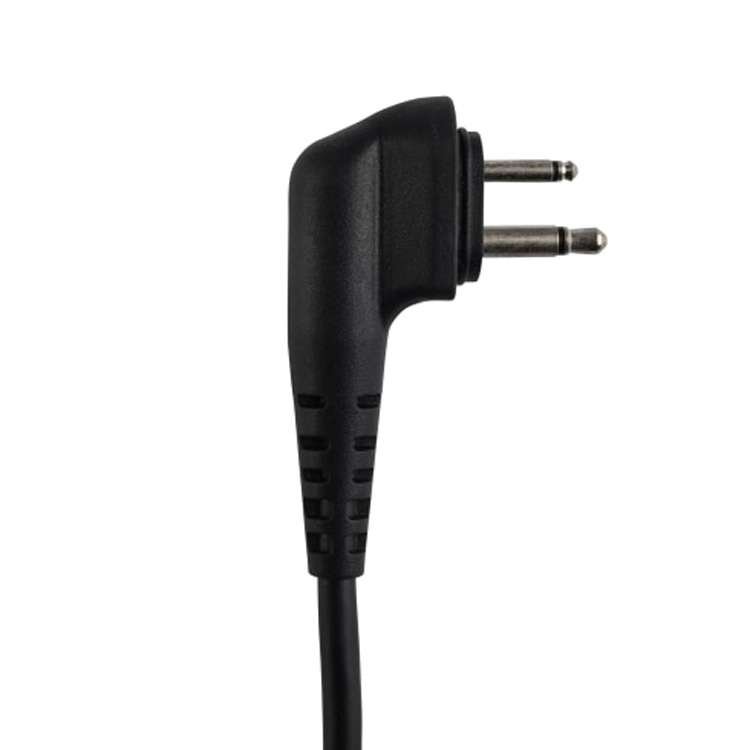

| Connector | Motorola business-radio two-pin plug |
| PTT Control | Uses the radio PTT button; no in-line PTT |
| VOX Support | Yes, when supported and enabled by the radio |
| Recommended Noise Level | Moderate-noise environments |
| External Adapter | Not required for verified compatible radios |
| Replacement Service Kit | Motorola REX4648A foam ear pad and microphone windscreen kit |
| Manufacturer | Motorola Solutions |
Before You Order
- This is a lightweight communication headset, not a hearing-protection headset.
- It is intended for moderate-noise environments rather than factories, mines or other extremely noisy locations.
- It does not have an in-line PTT switch; use the radio PTT button or enable VOX where supported.
- Do not assume compatibility from the connector appearance alone.
- Confirm whether you require an original Motorola unit or a compatible replacement before quotation.
Supply and Ordering Information
| MOQ | 1 Piece |
| Pricing | Current unit and bulk pricing available on request |
| Product Options | Original Motorola or compatible alternative, subject to stock and quotation |
| Payment | T/T or Credit Card |
| Shipping Terms | EXW, FOB, FCA, DAP, DDP or delivery to your appointed freight forwarder |
| Warranty | One-year replacement for confirmed quality problems, excluding man-made damage |
| Compatibility Check | Radio model verification available before order confirmation |
Frequently Asked Questions
Is BDN6773 the same product as BDN6773A?
BDN6773 is commonly used as the shortened product number, while BDN6773A is the complete Motorola part number with its revision suffix.
Does the headset have its own PTT button?
No. The user normally presses the PTT button on the radio. Hands-free transmission is possible when the connected radio supports VOX and the VOX function has been enabled.
Can it be used with Motorola CP200 or CP200D?
The connector may appear similar, but CP200 and CP200D compatibility was not confirmed in the Motorola documentation reviewed for this product. Please request compatibility verification before ordering.
Is it suitable for high-noise industrial environments?
No. The BDN6773A is a lightweight single-muff headset intended for moderate-noise environments. A dual-muff, noise-reducing or hearing-protection headset should be selected for high-noise workplaces.
Request Price and Confirm Compatibility
Send us your required quantity, destination country and complete Motorola radio model. We will confirm compatibility, product condition, current price, stock status and available shipping options. Please submit the inquiry form below.
