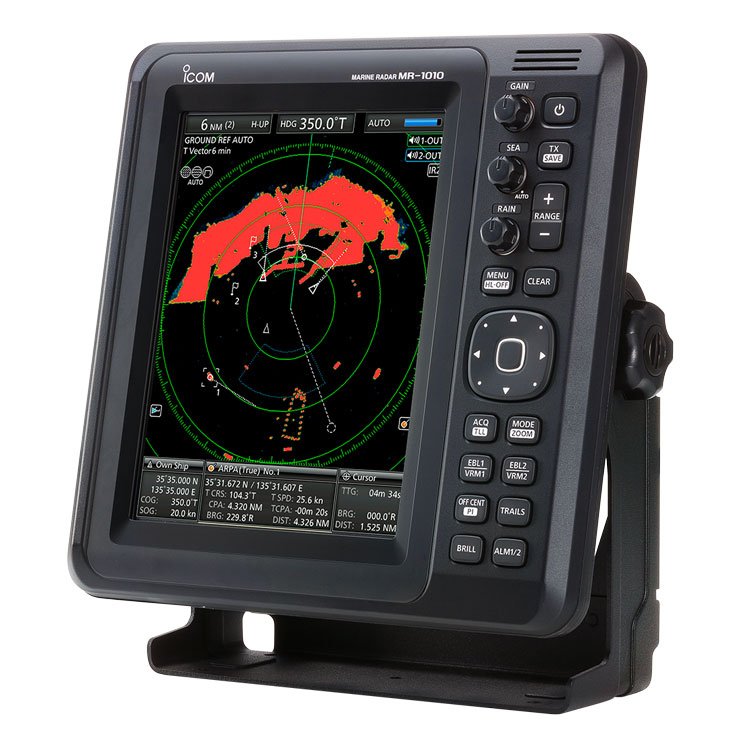

Icom MR-1010RII Marine Radar | 36NM 4kW Radar System
Icom MR-1010RII Marine Radar is a professional radar system designed for yachts, commercial vessels and marine navigation applications. Featuring a 36 nautical mile detection range, 4kW radome scanner, simplified ARPA target tracking, AIS overlay capability and DSC information display, the MR-1010RII improves situational awareness and collision avoidance at sea.
- Radar Type: Marine Radar with 60cm Radome Scanner
- Detection Range: Up to 36 NM
- Scanner Output: 4kW Peak Output Power
- Display: 10.4-inch Color TFT LCD
- Functions: Simplified ARPA, AIS Overlay, DSC Information Display, True Trail
- Connectivity: NMEA 0183 / IEC61162-2 compatible
- Application: Yachts, commercial ships, fishing vessels, offshore and coastal navigation
- MOQ: 1 Set
- Payment: T/T, Credit Card
- Shipping: EXW / FCA / DAP / DDP or ship to customer’s appointed forwarder
Icom MR-1010RII Marine Radar System for Professional Navigation Safety
The Icom MR-1010RII is a commercial-grade marine radar system designed to provide reliable vessel detection, navigation assistance and collision avoidance support. With a 36 nautical mile observation range, 4kW output radome scanner and a wide viewing angle color TFT display, the MR-1010RII helps operators monitor surrounding vessels, coastlines and navigation hazards in various marine environments.
Unlike basic navigation radar systems, the MR-1010RII integrates advanced safety functions including simplified ARPA (Automatic Radar Plotting Aids), AIS target overlay, DSC information display and true trail functions. These features provide operators with clearer information about vessel movement, distance, speed and collision risks.
For customers looking for an original Icom MR-1010RII marine radar supplier, we provide professional purchasing support, quotation assistance, shipping solutions and technical coordination for marine communication projects.
Icom MR-1010RII Key Specifications
| Model | Icom MR-1010RII |
| Product Type | Marine Radar System |
| Radar Range | Maximum 36 NM |
| Scanner Type | 60cm / 2ft Radome Scanner |
| Peak Output Power | 4kW |
| Operating Frequency | 9410MHz ±30MHz |
| Display | 10.4-inch Color TFT LCD |
| Resolution | 480 × 640 dots |
| Minimum Range | 25m |
| Rotation Speed | 24 / 36 rpm |
| Power Supply | 10.2–42V DC |
| Power Consumption | Approximately 55W |
| Input Data | NMEA 0183, N+1, AUX, IEC61162-2 |
| Output Data | NMEA 0183 |
| Display Protection | IPX4 |
| Scanner Protection | IPX6 |
Why Choose Icom MR-1010RII Marine Radar?
- Extended radar visibility: 36NM maximum observation range helps operators detect vessels, coastlines and obstacles earlier.
- Collision avoidance support: Simplified ARPA tracks selected targets and provides important navigation information including distance, bearing, CPA and TCPA when connected with required data sources.
- AIS integration: AIS target overlay allows operators to view vessel information together with radar echoes when connected to compatible AIS equipment.
- Professional marine reliability: Designed and engineered in Japan for demanding marine environments.
- Flexible installation: Wide DC input range and optional video output support different vessel installation requirements.
Why Buy Icom Marine Equipment From Us?
- Original Icom supply: Genuine Icom marine communication and navigation equipment supplied for global customers.
- B2B project support: Suitable for marine distributors, shipyards, yacht suppliers and vessel operators.
- Flexible MOQ: Starting from 1 set for testing, replacement or project requirements.
- Technical assistance: Support product selection, accessory matching and installation coordination.
- Warranty support: 1-year replacement warranty for quality issues.
Ordering & Shipping Information
- MOQ: 1 Set
- Payment: T/T Bank Transfer, Credit Card
- Shipping Terms: EXW, FCA, DAP, DDP available
- Delivery Tracking: Tracking information provided after shipment
- Forwarder Support: Ship to customer’s appointed logistics partner available
Applications
- Commercial vessels
- Yachts and recreational boats
- Fishing vessels
- Offshore operations
- Coastal navigation
- Marine safety and collision avoidance
Compatible Accessories
- UX-252 Video Output Unit
- OPC-2341 System Cable
- External Navigation Display
- AIS Receiver / Transponder
- Icom DSC Marine Radios
Frequently Asked Questions
Q: What is the maximum range of Icom MR-1010RII?
A: The MR-1010RII provides up to 36 nautical miles radar observation range.
Q: Does MR-1010RII support AIS information?
A: Yes. When connected to compatible AIS equipment, AIS targets can be overlaid on the radar display.
Q: Does MR-1010RII have ARPA function?
A: Yes. It includes simplified ARPA target tracking functions with required external bearing and position data.
Q: Can you supply Icom MR-1010RII internationally?
A: Yes. We provide worldwide shipping with tracking and flexible trade terms.
Request Icom MR-1010RII Quotation
Need pricing, availability or shipping information for Icom MR-1010RII? Submit your inquiry form below. Our team will provide quotation, stock availability and delivery options.
