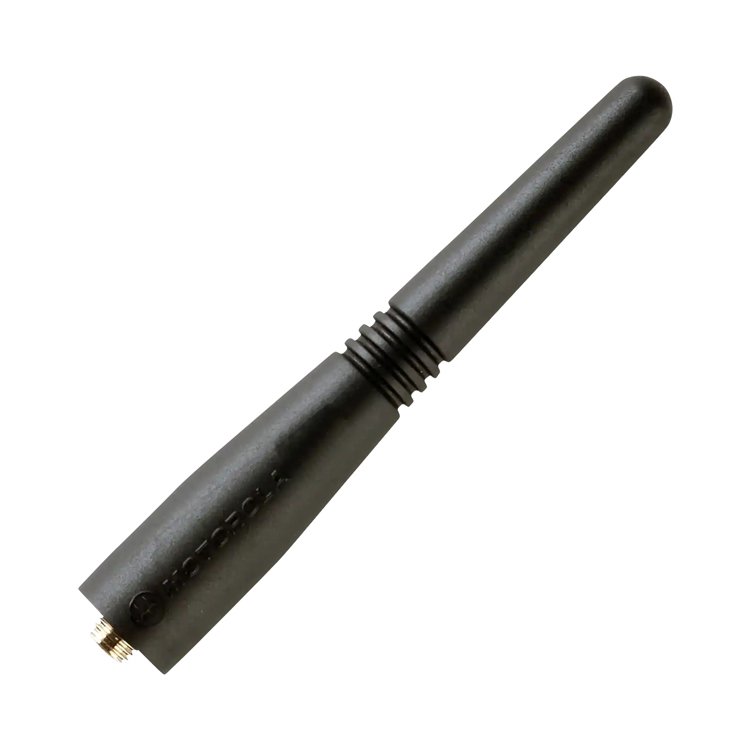

Motorola PMAD4020 PMAD4020A 380-403MHz Stubby Helical Antenna
The Motorola PMAD4020 / PMAD4020A is a compact 380-403 MHz stubby helical antenna designed for compatible Motorola professional portable two-way radios. Measuring approximately 9.2 cm, it is suitable for replacement, radio fleet maintenance and spare accessory procurement.
- Part Number: PMAD4020 / PMAD4020A
- Frequency Range: 380-403 MHz
- Frequency Classification: UHF by standard international band definition
- Antenna Type: Stubby Helical Antenna
- Length: Approx. 92.2 mm / 9.2 cm / 3.63 in
- Integrated GPS: No
- Mounting Style: Stud
- Compatible Radios: GP328, GP338, HT750, HT1250, CP185, CP200, PR400, EP450, CP200d, DP1400, XiR P3688 and DEP450
- Options: Original Motorola or cost-effective compatible antenna
- MOQ: 10 pcs; 1 pc sample available
Motorola PMAD4020 380–403 MHz Stubby Helical Antenna
The Motorola PMAD4020 / PMAD4020A is a compact stubby helical antenna designed for compatible Motorola professional portable radios operating within the 380–403 MHz frequency range.
Measuring approximately 92.2 mm / 9.2 cm in length, PMAD4020 provides a short antenna profile suitable for users who carry their radio on a belt or require a less obtrusive antenna than a full-length whip. The antenna does not include integrated GPS.
PMAD4020 is suitable for replacing damaged or missing antennas and for radio dealers, repair companies, fleet operators and system integrators maintaining existing Motorola radio fleets. We can supply both original Motorola antennas and lower-cost compatible replacement antennas.
Specifications
| Brand | Motorola Solutions |
| Part Number | PMAD4020 / PMAD4020A |
| Product Type | Portable Two-Way Radio Antenna |
| Frequency Range | 380–403 MHz |
| Frequency Classification | UHF by international frequency-band definition |
| Antenna Type | Stubby Helical Antenna |
| Length | Approx. 92.2 mm / 9.2 cm / 3.63 in |
| Integrated GPS | No |
| Mounting Style | Stud |
| Available Options | Original Motorola / Compatible Replacement |
Specification Note: Current Motorola product information specifies 380–403 MHz and approximately 92.2 mm. Some older Motorola accessory catalogs list PMAD4020A as 370–400 MHz and approximately 9 cm.
Compatible Motorola Radios
Motorola PMAD4020A is compatible with GP328, GP328 Plus, GP329, GP338, GP338 Plus, HT750, HT1250, HT1250 LS, HT1250 LS+, HT1550 XLS, CP185, CP200, CP200 XLS, PR400, EP450, CP200d, DP1400, XiR P3688 and DEP450.
These radio families were produced in multiple frequency configurations. Compatibility should therefore be confirmed using the exact radio model, operating frequency and existing antenna part number rather than the radio model name alone.
Ordering Information
| Sample | 1 pc sample available |
| MOQ | Usually 10 pcs for handheld radio antennas |
| Product Options | Original Motorola and cost-effective compatible antennas |
| Payment | T/T, Credit Card, WeChat Pay, Alipay |
| Trade Terms | EXW, FOB, FCA, DAP, DDP |
| Typical Delivery | Approximately 4–7 business days to most worldwide destinations |
Frequently Asked Questions
Is PMAD4020 a VHF or UHF antenna?
PMAD4020 operates from 380–403 MHz. Under the standard international frequency-band definition, frequencies from 300 MHz to 3000 MHz are classified as UHF. Motorola currently markets PMAD4020A under the product name “VHF Antenna, 380–403 MHz,” so buyers may encounter both descriptions in catalogs and online listings.
What frequency range should I use for PMAD4020?
Current Motorola product information specifies 380–403 MHz. Some older Motorola accessory catalogs specify 370–400 MHz. For current product listings and procurement, we recommend using the current 380–403 MHz specification unless the buyer is replacing an older antenna with a specific historical configuration.
Is PMAD4020A the same antenna as PMAD4020?
PMAD4020A is the commonly documented revision suffix within the PMAD4020 antenna family. If your existing antenna or purchasing record shows either number, send us the complete part number when requesting a quotation so the available version can be confirmed.
Does PMAD4020 include GPS?
No. Motorola’s current specifications identify PMAD4020A as an antenna without integrated GPS.
Can I buy an original Motorola or compatible PMAD4020 antenna?
Yes. We can supply both original Motorola PMAD4020 antennas and lower-cost compatible replacement antennas. Please specify your preferred option when requesting a quotation.
Can I order one PMAD4020 antenna as a sample?
Yes. A 1 pc sample can be requested for compatibility or product quality evaluation. The normal MOQ for handheld radio antenna orders is 10 pcs.
How long does international delivery normally take?
For products available from stock, delivery to most worldwide destinations normally takes approximately 4–7 business days. Actual transit time may vary depending on the destination, courier service and customs clearance.
Can you confirm whether PMAD4020 fits my Motorola radio?
Yes. Please provide the radio model, operating frequency and existing antenna part number. If available, you can also send a photo of the radio label so compatibility can be checked before shipment.
What happens if there is a product quality problem?
If a confirmed product quality problem occurs, we can arrange a replacement shipment or refund according to the specific order situation. Please provide the order details and relevant information so the issue can be handled promptly.
Can I purchase PMAD4020 together with other Motorola accessories?
Yes. You can combine antennas with batteries, chargers, microphones, belt clips, earpieces and other Motorola accessories in one order. Send us your complete part number and quantity list for a combined quotation and consolidated shipment.
Do you offer bulk pricing?
Yes. Bulk quotations are available. Please provide the required quantity and destination country so we can prepare pricing based on the product option, order volume and shipping method.
Will tracking information be provided after shipment?
Yes. Tracking information will be provided after shipment so buyers can follow the delivery status of their orders.
Request a Quote for Motorola PMAD4020 Antennas
Send us the PMAD4020 / PMAD4020A part number, Motorola radio model, operating frequency, required quantity and destination country. We can confirm compatibility, stock availability, original or compatible antenna options, shipping method and estimated delivery before you place the order.
