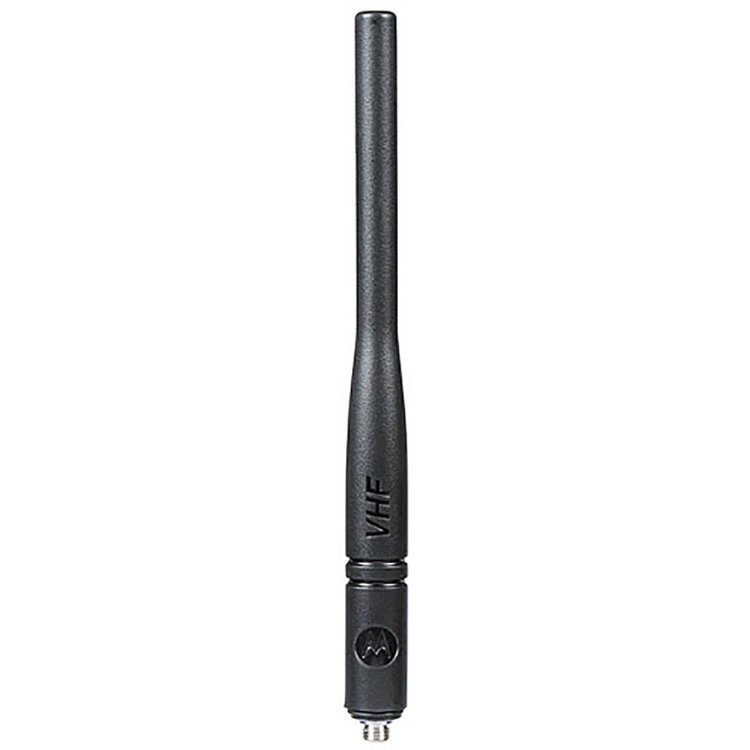

Motorola PMAD4116 PMAD4117 PMAD4118 VHF/GPS Helical Antenna
The Motorola PMAD4116, PMAD4117 and PMAD4118 are VHF/GPS combination helical antennas designed for compatible Motorola MOTOTRBO portable radios. The three part numbers share the same antenna family and cover different sections of the VHF band from 136 MHz to 174 MHz.
- PMAD4116: 144–165 MHz
- PMAD4117: 136–155 MHz
- PMAD4118: 152–174 MHz
- Band: VHF
- Antenna Type: VHF/GPS Combination Helical Antenna
- Compatible Radios: DP2400/e, DP2600/e, DP4000/e Series, XPR 3000/7000 Series, XiR P6000/P8000 Series, DEP and DGP Series VHF radios
- Options: Original Motorola or cost-effective compatible antenna
- MOQ: 10 pcs; 1 pc sample available
Motorola PMAD4116 / PMAD4117 / PMAD4118 VHF/GPS Helical Antennas
The Motorola PMAD4116, PMAD4117 and PMAD4118 are VHF/GPS combination helical antennas designed for compatible Motorola MOTOTRBO portable two-way radios. These three part numbers belong to the same antenna family but cover different VHF frequency ranges between 136 MHz and 174 MHz.
The antennas are suitable for replacing damaged or missing antennas, maintaining existing Motorola radio fleets and purchasing spare accessories for distributors, radio dealers, repair companies, system integrators and professional users.
We can supply both original Motorola antennas and lower-cost compatible replacement antennas, allowing buyers to select according to their budget, quantity and procurement requirements.
Specifications
| Brand | Motorola Solutions |
| Part Numbers | PMAD4116 / PMAD4117 / PMAD4118 |
| Product Type | Portable Two-Way Radio Antenna |
| Frequency Band | VHF |
| Antenna Type | VHF/GPS Combination Helical Antenna |
| GPS Capability | Supported on compatible GPS-equipped radio models |
| Available Options | Original Motorola / Compatible Replacement |
Part Numbers and Frequency Ranges
| Part Number | Frequency Range | Band | Type |
|---|---|---|---|
| PMAD4116 | 144–165 MHz | VHF | GPS Helical |
| PMAD4117 | 136–155 MHz | VHF | GPS Helical |
| PMAD4118 | 152–174 MHz | VHF | GPS Helical |
Compatible Motorola Radios
The PMAD4116, PMAD4117 and PMAD4118 antenna family is used across multiple Motorola MOTOTRBO portable radio families. Compatibility applies to the appropriate VHF configuration of the radio.
Europe / International: DP2400, DP2400e, DP2600, DP2600e; DP4400, DP4400e, DP4401, DP4401e, DP4600, DP4600e, DP4601, DP4601e, DP4800, DP4800e, DP4801 and DP4801e.
North America: XPR3300, XPR3500, XPR7350 and XPR7550, including applicable later revisions where the antenna connection and VHF frequency configuration correspond.
Asia Pacific: XiR P6600, XiR P6608, XiR P6620, XiR P6628; XiR P8600, XiR P8608, XiR P8620, XiR P8628, XiR P8660 and XiR P8668.
Latin America: DEP550, DEP550e, DEP570, DEP570e; DGP5050, DGP5550, DGP8050 and DGP8550 in applicable VHF configurations.
The DP2000 and XPR3000 radio families do not provide GPS functionality, but Motorola specifies that they can still use these antennas. For bulk orders, please provide the radio model, operating frequency and required antenna part number so compatibility can be confirmed before shipment.
Ordering Information
| Sample | 1 pc sample available |
| MOQ | Usually 10 pcs for handheld radio antennas |
| Product Options | Original Motorola and cost-effective compatible antennas |
| Payment | T/T, Credit Card, WeChat Pay, Alipay |
| Trade Terms | EXW, FOB, FCA, DAP, DDP |
| Typical Delivery | Approximately 4–7 business days to most worldwide destinations |
Frequently Asked Questions
Are PMAD4116, PMAD4117 and PMAD4118 original Motorola antennas?
We can supply both original Motorola antennas and lower-cost compatible replacement antennas. Please specify your preferred option when requesting a quotation so we can provide a solution according to your budget, quantity and project requirements.
Can I order one antenna as a sample?
Yes. A 1 pc sample can be requested for compatibility or product quality evaluation. The normal MOQ for handheld radio antenna orders is 10 pcs.
Can I mix PMAD4116, PMAD4117 and PMAD4118 in one order?
Yes. Mixed part number orders are accepted. This is useful for distributors, repair companies and fleet operators maintaining Motorola radios configured for different portions of the VHF frequency band.
How long does international delivery normally take?
For products available from stock, delivery to most worldwide destinations normally takes approximately 4–7 business days. Actual transit time may vary depending on the destination, courier service and customs clearance.
Can you confirm compatibility before shipment?
Yes. Please provide the Motorola radio model, operating frequency and required quantity. If available, you can also send the existing antenna part number or a photo of the radio label so we can help verify compatibility before shipment.
What happens if there is a product quality problem?
If a confirmed product quality problem occurs, we can arrange a replacement shipment or refund according to the specific order situation. Please provide the order information and relevant details so the issue can be handled promptly.
Can I purchase these antennas together with other Motorola accessories?
Yes. Mixed accessory orders are accepted. You can send us a complete list of antenna, battery, charger, audio accessory or other part numbers and quantities for a combined quotation and consolidated shipment.
Do you offer bulk pricing?
Yes. Bulk quotations are available. Please provide the required part numbers, quantities and destination country so we can prepare a quotation based on the product option, order volume and shipping method.
What payment methods do you accept?
We accept T/T bank transfer, credit card, WeChat Pay and Alipay. Available payment arrangements can be confirmed according to the order amount and destination.
Will tracking information be provided after shipment?
Yes. Tracking information will be provided after shipment so buyers can follow the delivery status of their orders.
Request a Quote
Send us the required PMAD4116, PMAD4117 or PMAD4118 part number, Motorola radio model, operating frequency, quantity and destination country. We can confirm compatibility, stock availability, original or compatible antenna options, shipping method and estimated delivery before you place the order.
