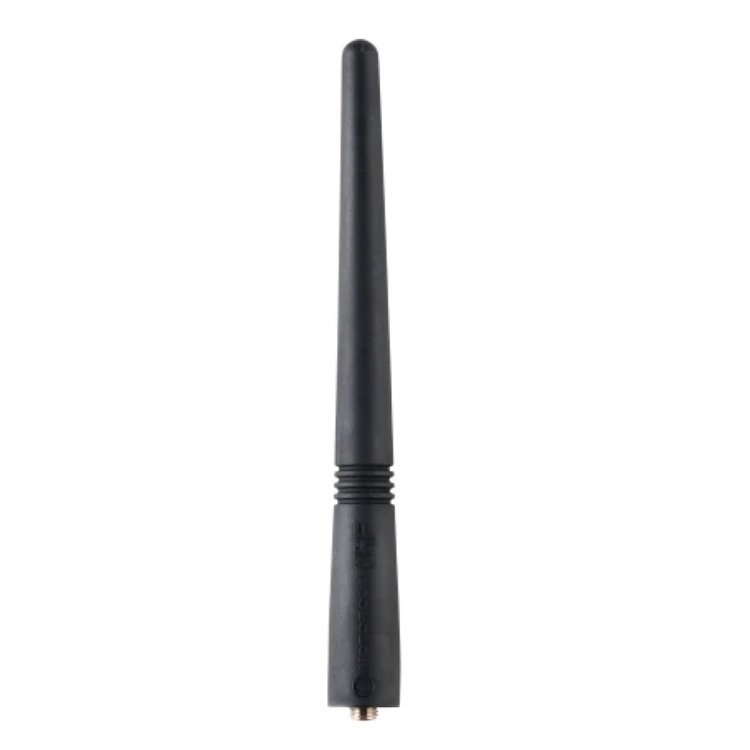

Motorola PMAD4025 PMAD4025A VHF 150-161MHz Stubby Helical Antenna
The Motorola PMAD4025 / PMAD4025A is a compact VHF 150–161 MHz stubby helical antenna designed for compatible Motorola professional portable two-way radios. Measuring approximately 9 cm, its short profile is suitable for radios frequently carried on a belt and for replacement or fleet maintenance applications.
- Part Number: PMAD4025 / PMAD4025A
- Frequency Range: 150–161 MHz
- Band: VHF
- Antenna Type: Stubby Helical Antenna
- Length: Approx. 3.5 in / 8.9–9 cm
- Integrated GPS: No
- Mounting Style: Stud
- Compatible Radios: GP328/338, GP329/339, GP340, GP344, GP380, GP388, HT750, HT1250 Series, HT1550 XLS, PRO5150/7150/9150 and other compatible VHF Professional Series radios
- Options: Original Motorola or cost-effective compatible antenna
- MOQ: 10 pcs; 1 pc sample available
Motorola PMAD4025 VHF 150–161 MHz Stubby Helical Antenna
The Motorola PMAD4025 / PMAD4025A is a compact VHF stubby helical antenna designed for compatible Motorola professional portable two-way radios operating within the 150–161 MHz frequency range.
Measuring approximately 3.5 inches / 8.9–9 cm, PMAD4025 provides a short, non-obtrusive antenna profile for users who frequently carry their radio on a belt. Its rugged helical construction and capless sheath provide flexibility for everyday professional radio use.
PMAD4025 is suitable for replacement, radio fleet maintenance and spare accessory procurement. We can supply both original Motorola antennas and lower-cost compatible replacement antennas according to the buyer’s budget, quantity and purchasing requirements.
Specifications
| Brand | Motorola Solutions |
| Part Number | PMAD4025 / PMAD4025A |
| Product Type | Portable Two-Way Radio Antenna |
| Band | VHF |
| Frequency Range | 150–161 MHz |
| Antenna Type | Stubby Helical Antenna |
| Length | Approx. 3.5 in / 88.9 mm / 9 cm |
| Integrated GPS | No |
| Mounting Style | Stud |
| Available Options | Original Motorola / Compatible Replacement |
Specification Note: Motorola’s main product page and legacy Professional Series catalogs specify 150–161 MHz and approximately 3.5 inches. Some current Motorola Shop listings use 150.8–162 MHz in the product title. Buyers replacing an existing antenna can provide the complete radio model and antenna part number for confirmation.
Compatible Motorola Radios
The Motorola PMAD4025 antenna has been used across multiple regional versions of Motorola Professional Series portable radios. Compatibility applies to radios using the appropriate VHF frequency configuration and compatible antenna connection.
Europe / International: GP340, GP340EX, GP344, GP380, GP380EX, GP388, GP580EX and GP680EX.
North America: HT750, HT1250, HT1250 LS, HT1250 LS+ and HT1550 XLS in applicable VHF configurations.
Asia Pacific: GP328, GP338, GP329, GP339, PTX700, PTX760 and PTX780 in applicable VHF configurations.
Latin America: PRO5150, PRO7150 and PRO9150 Professional Series portable radios in the corresponding VHF configuration.
Motorola produced many of these radio families in multiple frequency versions. For purchasing confirmation, please provide the exact radio model, operating frequency and existing antenna part number before ordering.
Ordering Information
| Sample | 1 pc sample available |
| MOQ | Usually 10 pcs for handheld radio antennas |
| Product Options | Original Motorola and cost-effective compatible antennas |
| Payment | T/T, Credit Card, WeChat Pay, Alipay |
| Trade Terms | EXW, FOB, FCA, DAP, DDP |
| Typical Delivery | Approximately 4–7 business days to most worldwide destinations |
Frequently Asked Questions
Is PMAD4025 a VHF or UHF antenna?
PMAD4025 is a VHF antenna. Its operating frequency is approximately 150–161 MHz, which is within the standard VHF frequency band.
Is PMAD4025 a stubby or whip antenna?
PMAD4025 is a stubby helical antenna. Motorola designed it as a short, non-obtrusive antenna for radios that are frequently carried on a belt.
What is the frequency range of PMAD4025A?
Motorola’s main product page specifies 150–161 MHz. Some current Motorola Shop listings use 150.8–162 MHz. If you are replacing an existing antenna for a specific radio fleet, send us the exact radio frequency configuration for confirmation.
Is PMAD4025A the same as PMAD4025?
PMAD4025A is the commonly documented revision suffix within the PMAD4025 antenna family. If your existing antenna or purchasing record shows either part number, send us the complete number when requesting a quotation so the available version can be confirmed.
Does PMAD4025 include integrated GPS?
No. Motorola specifies PMAD4025A as a portable radio antenna without integrated GPS.
Can I buy an original Motorola or compatible PMAD4025 antenna?
Yes. We can supply both original Motorola PMAD4025 antennas and lower-cost compatible replacement antennas. Please specify your preferred option when requesting a quotation.
Can I order one PMAD4025 antenna as a sample?
Yes. A 1 pc sample can be requested for compatibility or product quality evaluation. The normal MOQ for handheld radio antenna orders is 10 pcs.
How long does international delivery normally take?
For products available from stock, delivery to most worldwide destinations normally takes approximately 4–7 business days. Actual transit time may vary depending on destination, courier service and customs clearance.
Can you confirm whether PMAD4025 fits my Motorola radio?
Yes. Please provide the radio model, operating frequency and existing antenna part number. If available, you can also send a photo of the radio label so compatibility can be checked before shipment.
Can I mix PMAD4025 with other antenna models in one order?
Yes. Mixed-model antenna orders are accepted. You can send us a complete part number and quantity list for a combined quotation.
What happens if there is a product quality problem?
If a confirmed product quality problem occurs, we can arrange a replacement shipment or refund according to the specific order situation. Please provide the order details and relevant information so the issue can be handled promptly.
Can I purchase PMAD4025 together with other Motorola accessories?
Yes. You can combine antennas with batteries, chargers, microphones, belt clips, earpieces and other Motorola accessories in one order for a combined quotation and consolidated shipment.
Do you offer bulk pricing?
Yes. Bulk quotations are available. Please provide the required quantity and destination country so we can prepare pricing based on the product option, order volume and shipping method.
What payment methods do you accept?
We accept T/T bank transfer, credit card, WeChat Pay and Alipay. Available payment arrangements can be confirmed according to the order amount and destination.
Will tracking information be provided after shipment?
Yes. Tracking information will be provided after shipment so buyers can follow the delivery status of their orders.
Request a Quote for Motorola PMAD4025 Antennas
Send us the PMAD4025 / PMAD4025A part number, Motorola radio model, operating frequency, required quantity and destination country. We can confirm compatibility, stock availability, original or compatible antenna options, shipping method and estimated delivery before you place the order.
