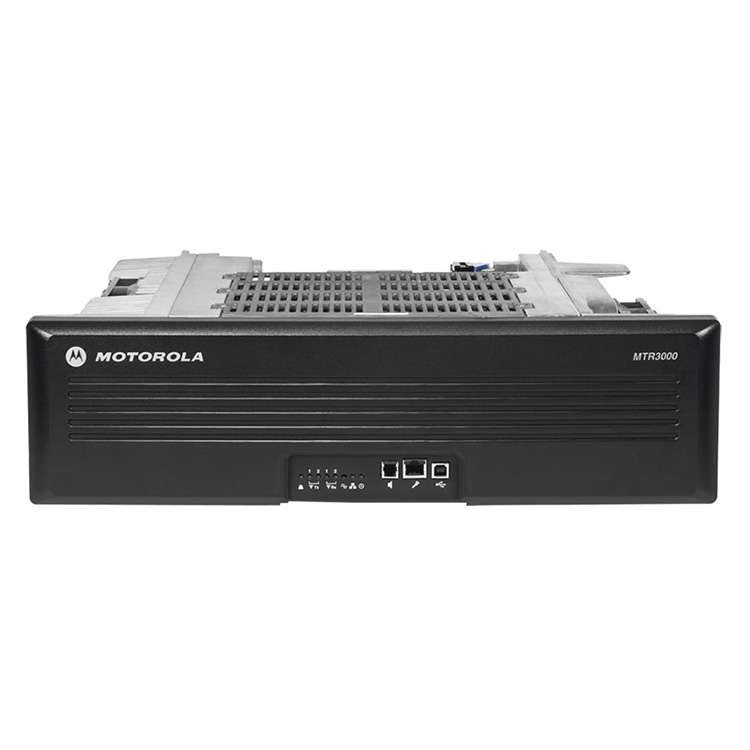

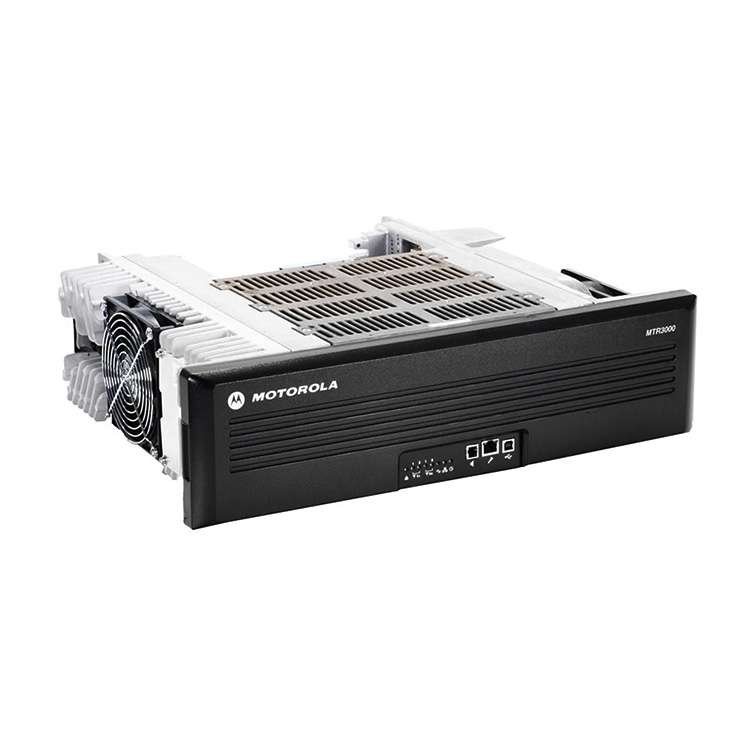

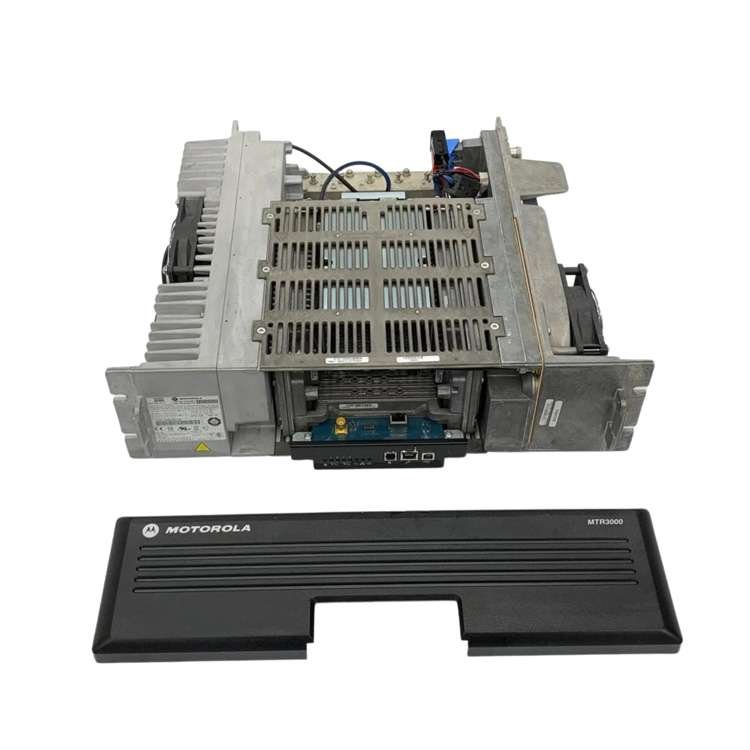

Motorola MTR3000 MTR 3000 Digital Two Way Radio Base Station Repeater
TSHICOM supplies Motorola MTR3000 MOTOTRBO base stations and repeaters for organizations maintaining or expanding professional radio networks. High-power VHF/UHF configurations are available subject to model and regional specifications, with worldwide sourcing and delivery support.
Motorola MTR3000 supports MOTOTRBO digital and conventional analog operation, 100% continuous-duty applications, two digital TDMA voice/data paths and system options including IP Site Connect and Capacity Plus.
Motorola MTR3000 MOTOTRBO Repeater Overview
The Motorola MTR3000 is a professional high-power MOTOTRBO base station and repeater designed to extend radio coverage and provide reliable infrastructure for commercial, industrial, utility and professional communication networks.
It supports both MOTOTRBO DMR digital operation and conventional analog communication, making the MTR3000 particularly useful for organizations maintaining mixed or legacy radio infrastructure. In digital mode, TDMA technology provides two simultaneous voice or data paths within one 12.5 kHz channel.
For procurement, it is important to confirm the exact MTR3000 hardware version before ordering. Frequency coverage and RF output differ between regional configurations, with VHF, UHF and selected 800/900 MHz versions produced for different markets. TSHICOM can help verify the required frequency band, power version and existing MOTOTRBO system before quotation.
Key Features
- MOTOTRBO DMR digital and conventional analog base station/repeater
- Designed for high-power, continuous-duty professional communication systems
- Two simultaneous voice or data paths in 12.5 kHz digital TDMA operation
- Supports VHF, UHF and selected 800/900 MHz configurations depending on regional model
- High-power versions support up to 100W RF output depending on frequency band and hardware configuration
- Supports MOTOTRBO IP Site Connect for multi-site coverage
- Supports Capacity Plus single-site trunking applications
- Compatible with additional MOTOTRBO system architectures depending on software and system generation
- Integrated AC/DC power supply
- External DC battery backup capability
- Rack-mount design for professional infrastructure installations
- Remote and local diagnostic capabilities for system maintenance
Technical Specifications
| Model | Motorola MTR3000 |
| Product Type | MOTOTRBO Base Station / Repeater |
| Operating Modes | MOTOTRBO Digital / Conventional Analog |
| Digital Protocol | DMR / ETSI TS 102 361 |
| Frequency Options | VHF / UHF / selected 800–900 MHz versions, region dependent |
| VHF | 136–174 MHz on applicable versions; regional ranges may be narrower |
| UHF | 403–470 MHz / up to approximately 524 MHz on applicable versions |
| Number of Frequencies | Up to 16 |
| RF Output | Up to 100W on applicable configurations; lower-power regional versions also exist |
| Channel Spacing | 12.5 / 25 kHz depending on operating mode and regional configuration |
| Duty Cycle | 100% Continuous Duty |
| AC Supply | 85–264 VAC, 47–63 Hz on applicable configurations |
| Operating Temperature | -30°C to +60°C |
| Installation | 19-inch Rack / Cabinet Installation |
| Availability | Legacy product; availability and support status vary by market |
MTR3000 System Compatibility
MTR3000 was designed for more than simple local repeater operation. Depending on programming, software generation and system configuration, it can be deployed in MOTOTRBO Conventional, IP Site Connect, Capacity Plus and other historical MOTOTRBO network architectures.
If you are purchasing an MTR3000 to replace an existing repeater, send us the model number, frequency range, transmit power and current system type before ordering. For networked systems, firmware and system-version compatibility should also be checked.
Motorola MTR3000 vs DR3000
Both DR3000 and MTR3000 were widely used in MOTOTRBO infrastructure, but the MTR3000 is positioned as a higher-power base station/repeater platform. Depending on version, MTR3000 configurations can provide substantially higher RF output and more infrastructure-oriented installation options than DR3000.
Do not select an MTR3000 only on the basis that it is a higher-power repeater. Frequency licensing, antenna system design, duplexer configuration, site coverage and compatibility with the existing MOTOTRBO network should all be considered before replacement or system expansion.
Typical Applications
- Manufacturing plants and industrial complexes
- Utilities and energy infrastructure
- Transportation and logistics networks
- Large warehouses and distribution centers
- Mining and remote industrial sites
- Security and facility communication networks
- Municipal and professional radio systems
- Multi-site MOTOTRBO communication networks
- Existing MTR3000 replacement and spare infrastructure projects
What Buyers Should Confirm Before Ordering
Because MTR3000 was manufactured in multiple regional configurations, matching the product correctly is more important than simply ordering by model name.
- Frequency band: Confirm VHF, UHF or other required band.
- Exact frequency range: Different regional versions cover different portions of the band.
- RF power: Confirm the required output because 40W, 60W and 100W-class configurations may exist.
- System type: Conventional, IP Site Connect, Capacity Plus or another MOTOTRBO architecture.
- Firmware/software: Important when replacing equipment within an existing network.
- TX/RX frequencies: Required for correct repeater and duplexer configuration.
Why Purchase Motorola MTR3000 From TSHICOM?
- Configuration verification: We can confirm frequency band, power version and application requirements before quotation.
- Legacy Motorola sourcing: Support for customers maintaining existing MOTOTRBO infrastructure.
- Complete procurement: Repeaters, portable radios, mobile radios and related accessories can be consolidated into one shipment.
- Flexible quantity: Single-unit replacement requirements and larger project orders are supported.
- Worldwide delivery: Export handling, international logistics and shipment tracking available.
- After-sales support: Quality problems can be handled through replacement or refund according to order conditions.
Purchasing Information
| MOQ | 1 unit |
| Availability | Subject to model, frequency band and current stock |
| Payment | T/T, Credit Card |
| Trade Terms | EXW, FOB, FCA, DAP, DDP |
| Typical Delivery | Normally 4–7 business days when stock is available, depending on destination |
FAQ
Is Motorola MTR3000 still available?
MTR3000 is now a legacy product and its official status varies by region. Existing inventory and tested units may still be available. Contact us with the required frequency band, power and quantity for a stock check.
Are all Motorola MTR3000 repeaters 100W?
No. Motorola produced different MTR3000 configurations for different markets. High-power 100W versions exist, while some regional VHF/UHF versions have lower rated RF output. The exact model should be confirmed before purchase.
Can an MTR3000 replace my existing DR3000?
Possibly, but it is not a simple model-for-model replacement in every installation. Frequency range, output power, duplexer, antenna system, firmware and MOTOTRBO network configuration should be checked first.
What information should I send for a quotation?
Please provide the required quantity, frequency band, TX/RX frequencies, desired RF power and current MOTOTRBO system type. If replacing an existing repeater, sending the existing model/option label is recommended.
Need a Motorola MTR3000 repeater or replacement for an existing MOTOTRBO network?
Send TSHICOM your model number, frequency band, power requirement, quantity and current system information. We can check the appropriate configuration and availability before quotation.
